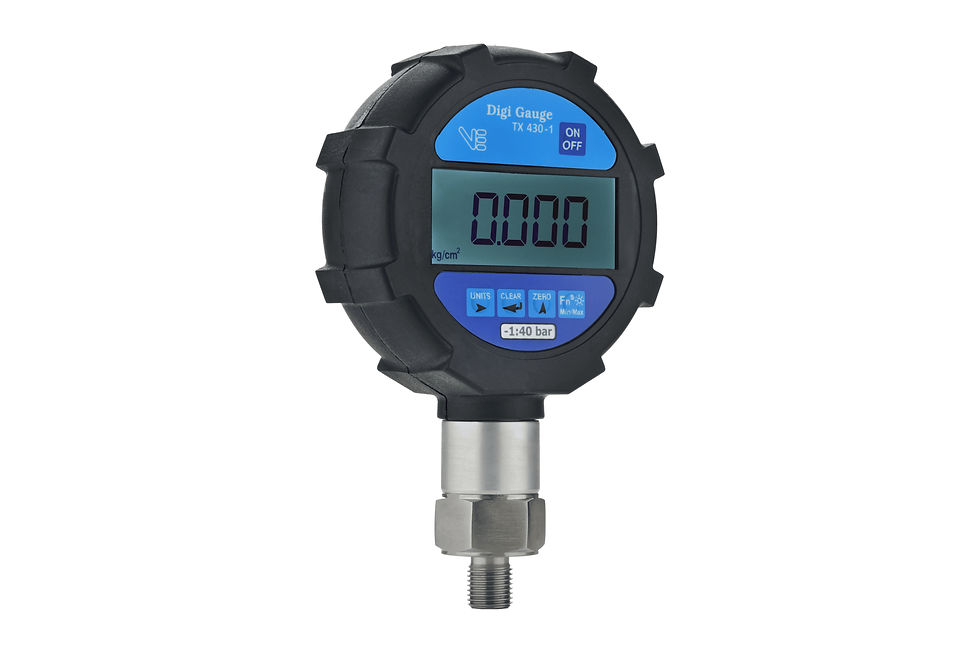

TX 430-1
The TX 430-1 is a high-accuracy digital pressure gauge designed for demanding industrial and calibration applications. With an accuracy of 0.1% FS, it is built inside a robust ABS dye-moulded enclosure that ensures durability and reliability in tough environments.
The instrument offers customisable pressure ranges from −1 to 1000 bar and is also available in high-pressure versions up to 3000 bar (accuracy varies with range). For specialised needs, an absolute pressure option is also available.
Specifications
-
Accuracy: -/+ 0.1% F.S. (Full Scale) only up to 1000 bar.
-
Pressure Range: Customisable from -1 to 1000 bar. High Pressure Ranges (up to 3000 bar) and Absolute Pressure Ranges Available
-
Display: 7 segment LCD display (15 mm) x 5 digits.
-
Pressure Units: kg/cm2, bar, psi, Pa, kPa, mmHg, mmWc/mmH2O, inHg, inWc/inH2O, mbar
-
Process Connection: 1/4" BSP
-
Enclosure: ABS Dye Moulded 90 mm diameter
-
Power: Battery Operated (5 x AAA batteries)
-
Battery Life: Approx 500 hours
